MX Series

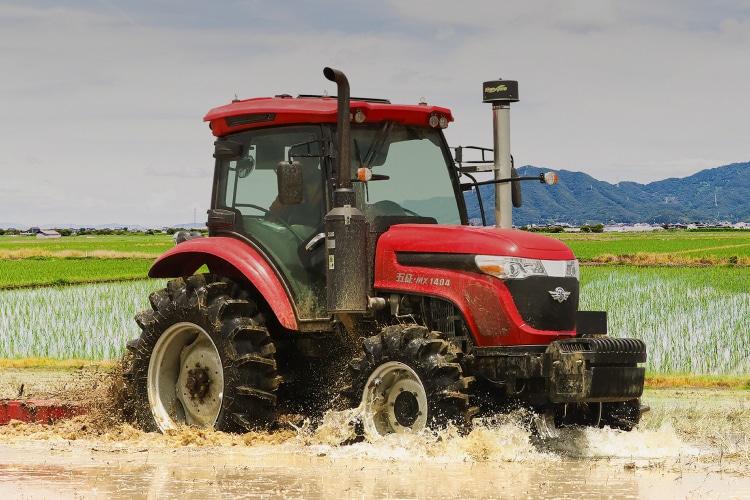

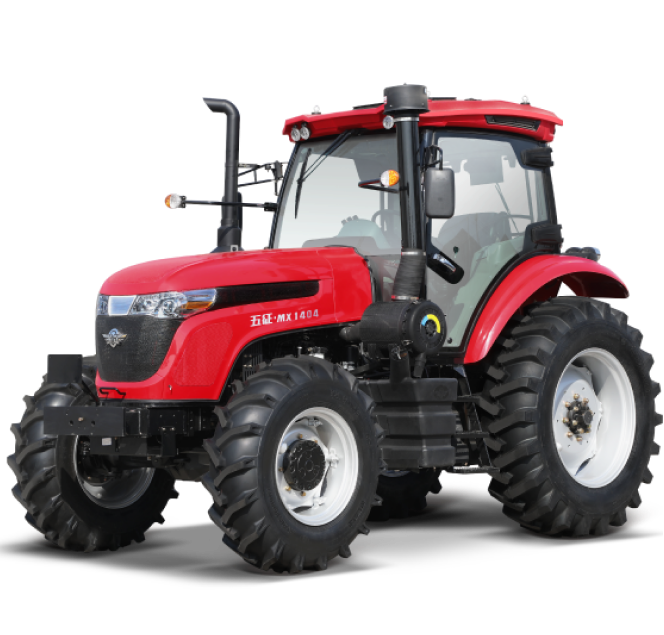

MX series tractors are an excellent quality line independently developed by our company with 100-150 hp. The entire machine features high weight and high traction, and can be used for both paddy fields and dry fields, satisfying operation demands for rotary tilling, seeding, pulping, etc.
-

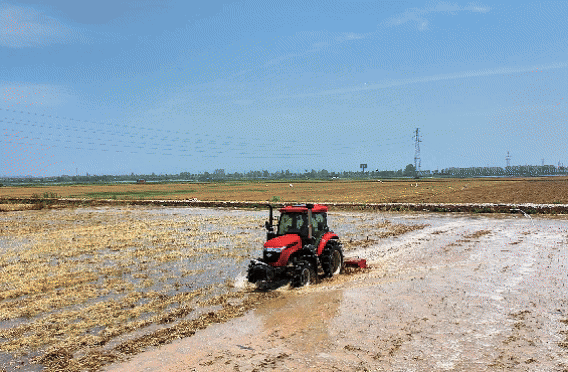

Adaptable for Any TerrainDesigned to excel in both paddy fields and drylands, mastering tasks such as tilling, seeding, and leveling.
-

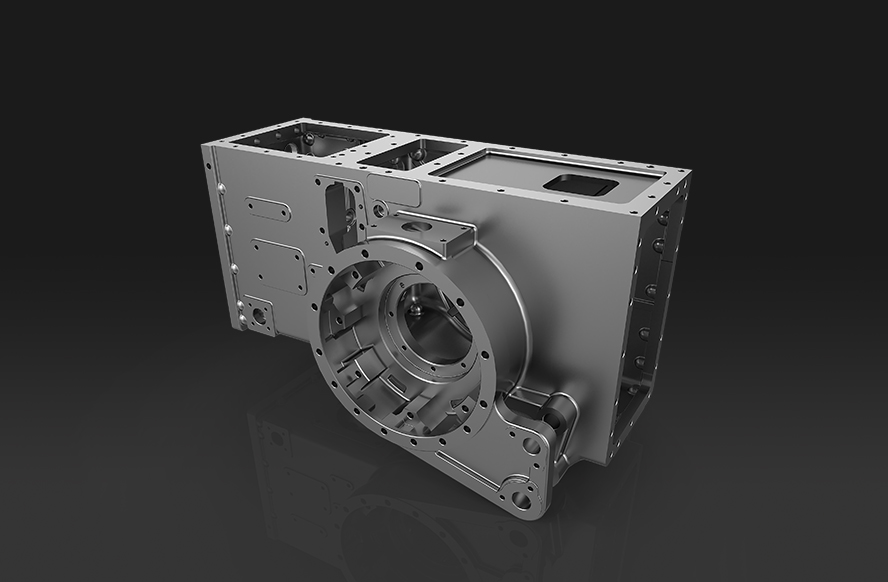

Robust and Reliable DesignThe integrated rear axle reduces connection points and improves stability and durability of the overall structure, allowing you to work with more confidence.
-
Smooth and Safe OperationFeatures a sub-clutch alarm system and low-noise helical gears to monitor equipment status in real time, creating a quiet and secure driving environment.
-
Prioritize safety and reliable brakingThe mechanical power-assist brake system ensures robust stopping power for long hauls or high-speed transitions.
-

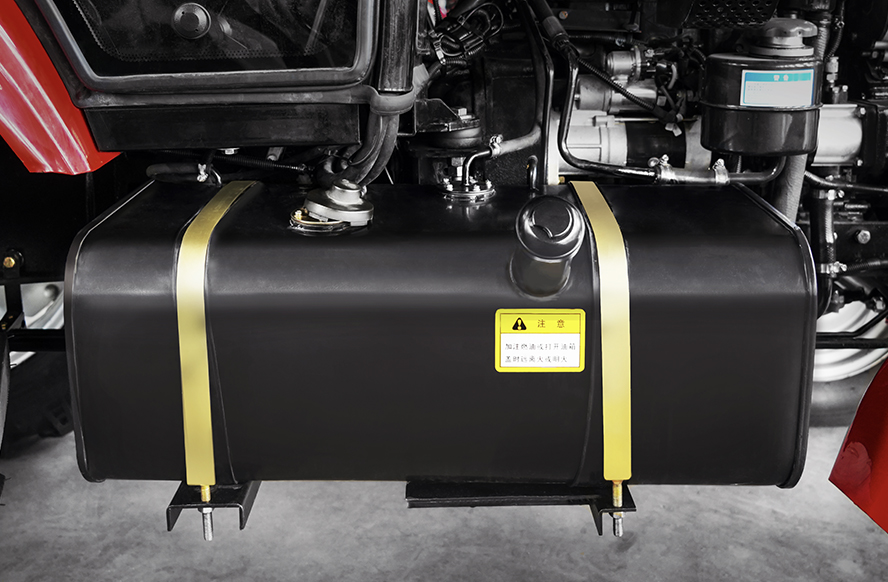

Reinforced Protection for Challenging EnvironmentsEquipped with a steel fuel tank for enhanced durability, making it ideal for operation in forested or rough terrain.
Technical specification
| Item | Unit | Design value |
| Model | / | MX1404 |
| External dimensions (L×W×H) | mm | 4790X2200X2950 |
| wheelbases | mm | 2250 |
| Wheeltrack - Front wheeltrack | mm | 1705 |
| Wheeltrack - Rear wheeltrack | mm | 1710 |
| Wheeltrack (front/rear) adjustment mode | / | Step adjustable/step adjustable |
| Minimum ground clearance | mm | 445 |
| Minimum useable mass | kg | 4535 |
| Number of gears - forward/reverse | / | 16/16 |
| Number of gears - main transmission/auxiliary transmission/shuttling | / | 2004/4/2 |
| Minimum turning radius - No unilateral braking | m | 4.4士0.3 |
| Connection between engine and clutch | / | Direct connection |
| PTO shaft power | KW | ≥100.3 |
| Maximum traction force | KN | ≥40 |
